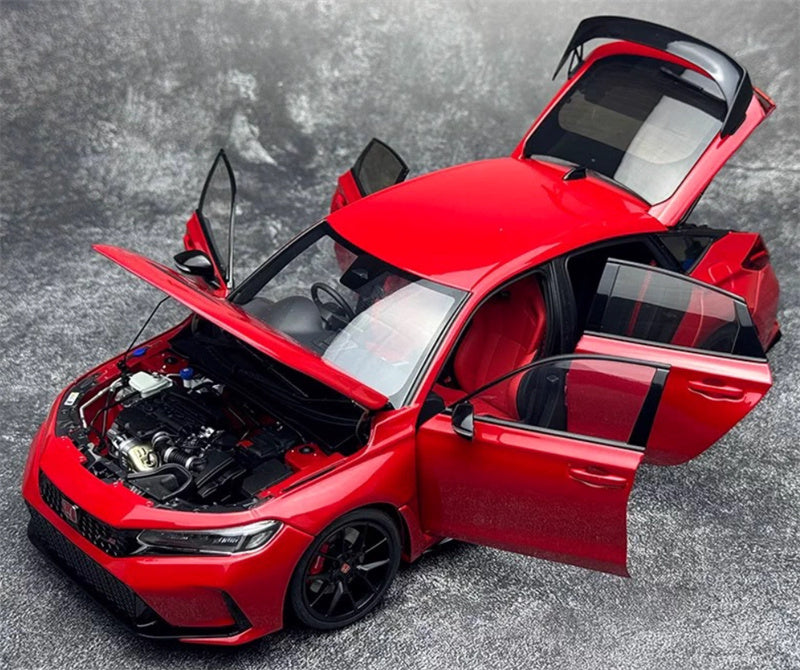

MOTORHELIX Honda Civic Type R FL5 Rallye Red 1:18 diecast model — 699-unit limited edition pre-built, side profile view

MOTORHELIX Honda Civic Type R FL5 1:18 Review — 699-Piece Limited JDM

Model Review · Scale Metals · June 2026

MOTORHELIX Honda Civic Type R FL5 1:18 JDM Review — 699-Unit Rallye Red Limited Edition

Quick Answer: MOTORHELIX's Rallye Red Honda Civic Type R FL5 is a 699-unit numbered pre-built 1:18 diecast with alloy dog-leg hinges on all four doors, bonnet (metal support rod), and trunk (hydraulic rod). Engine bay replicates the K20C1 VTEC Turbo with removable plastic cover, woven carbon-texture intake cap, and gold/brass turbo heat shield. Interior is RHD with alloy-etched accelerator pedal, water-slide decal instruments, and red flocked floor. Wheels: 10-spoke matte black with red Brembo calipers and legible Michelin Pilot Sport 4S sidewall text on 265/30ZR19-spec tyres. Rear: 3 asymmetric chrome exhaust tips, 5-fin diffuser, alloy wing posts. Dimensions: 26 cm (L) × 10 cm (W).

The FL5 is the sixth-generation Civic Type R, introduced in 2022. It carries over the 2.0L K20C1 block from the FK8 but adds a redesigned turbocharger, revised exhaust routing, and updated brake cooling — lifting output to 315 hp at 6,500 rpm and 310 lb-ft of torque, up 9 hp and 15 lb-ft over the FK8.[1] The FL5 replaces the FK8's bolt-on wide-body with an integrated wider rear body and eliminates decorative vents on the front bumper — changes most visible at 1:18 scale in the smoother front fascia and seamless rear fender blend.

MOTORHELIX released this Rallye Red (R-513) FL5 as a 699-unit numbered run — among the first 1:18 pre-built productions of the sixth-generation Type R.[3] This review documents every openable section, the engine bay with cover removed, and every detail the three source inputs — reviewer observations, direct image analysis, and OEM specifications — yielded together.

Specification Detail
Manufacturer MOTORHELIX (MH)
Subject vehicle Honda Civic Type R FL5 — Rallye Red (R-513)
Scale 1:18
Edition size 699 units — numbered limited run
Build type Pre-built, pre-painted — display-ready
Primary material Diecast alloy body; ABS detail components
Dimensions 26 cm (L) × 10 cm (W) / 10.2 in × 3.9 in
Opening features All four doors, bonnet/hood, trunk lid
Steering Front wheels steer with steering wheel rotation
Suspension Fixed ride height — no adjustable suspension
Drive configuration RHD (right-hand drive)
Age suitability 16+ collector display item

Exterior: Body and Front Fascia

Front Three-Quarter View

MOTORHELIX Honda Civic Type R FL5 1:18 Rallye Red — front three-quarter view showing grille, splitter winglets, and full body profile
The MOTORHELIX FL5 1:18 front side skirt carries a forward upward-curving fin at its leading edge — a detail absent on most competitor 1:18 FL5 renditions, where the skirt reads as a flat lower panel without this aero terminus. The rear wing silhouette is visible from the front three-quarter angle, confirming the wing height is consistent with the production FL5's track-oriented tall-wing specification.

Panel gaps across the hood, front fenders, and door apertures are uniform. The front fascia presents the FL5's dual-section grille: an upper portion with matte black hexagonal mesh centred with a red Honda H badge and TYPE R emblem; and a larger trapezoidal lower section flanked by black side intakes at each outer bumper corner. The front splitter is a full-width black unit with upward-curving outer winglets — accurately replicating the FL5's aerodynamic lower package. A matte black rectangular hood vent sits centrally on the bonnet.

Front Face and Grille

MOTORHELIX FL5 1:18 front grille close-up — Honda H badge, TYPE R emblem, DRL strip, headlight detail
The Honda H badge surround on the MOTORHELIX FL5 1:18 is rendered in red (not chrome), matching the production FL5's red-background badge specification — a colour-accuracy point other 1:18 Type R releases frequently get wrong by defaulting to a chrome ring. The TYPE R emblem reads as white lettering on a red background, individually mounted within the upper grille mesh rather than moulded as a single casting with the Honda badge.

At close range, headlight housings show a dark-tinted lens treatment (not plain clear) over multi-reflector internal geometry, with a thin linear DRL strip following the upper headlight contour. No amber indicator elements are present — consistent with FL5 JDM specification. Vertical side intakes on the outer bumper replace dedicated fog-light pods. Circular parking sensor indentations are present on both outer bumper areas. The lower grille mesh mirrors the upper section's hexagonal pattern, filling the full trapezoidal lower opening.

Side Profile and Mirror Detail

Full Side Profile

MOTORHELIX FL5 1:18 full side profile — gloss black roof, integrated rear fender flare, side skirt, fin antenna
The MOTORHELIX FL5 1:18 roof panel is finished in gloss black rather than body-colour red — replicating the production FL5's two-tone roof treatment, a paint specification detail that most entry-level 1:18 interpretations omit in favour of a single-colour body. The A- and B-pillars are separately finished in gloss black, extending the dark accent continuously from roofline to door frames.

The FL5's integrated wider rear body is represented through rear fender flares that blend seamlessly into the bodywork — no visible panel step or seam, confirming the correct FL5 body interpretation versus the FK8's separately readable bolt-on flares. The side skirt is a multi-layer black unit with a defined upward kick at the rear arch and is a structurally separate element from the door sill. A matte black shark-fin antenna sits at the roof trailing edge. Front fenders carry a black vent-style garnish on the lower-rear section just ahead of the door — a detail absent on several competitor 1:18 FL5 releases. Window glazing uses a dark-tint treatment throughout.

Side Mirror Detail

MOTORHELIX FL5 1:18 side mirror close-up — LED indicator strip, body-colour door handle, tinted side glass
Red front sport seat upholstery is visible through the dark-tinted side window glass — confirming the red-black interior colour split is legible even in closed-door display position without opening a door. Front windshield wiper blades are replicated as separate components at the base of the windscreen, a detail omitted on most 1:18 diecast in this subject category.

The door mirror housing is black with a visible LED indicator strip along its lower edge — a detail absent on several competitor 1:18 FL5 releases. Door handles are body-colour red, not chrome or gloss black. Panel lines between the front fender and door remain clean and tight through the full side profile length.

Wheels and Braking System

Wheel, Caliper, and Tyre

MOTORHELIX FL5 1:18 wheel close-up — 10-spoke matte black, red Brembo caliper, Michelin Pilot Sport 4S sidewall text, etched brake disc
The side mirror housing on the MOTORHELIX FL5 1:18 carries a clear/smoked integrated turn signal indicator strip, visible from the wheel-arch angle — distinguishing it from mirror housings on competitor releases that replicate only the mirror glass and black housing with no indicator lens detail. The fender-side lower garnish behind the front wheel arch is a matte black integrated element, not a sticker application.

The 10-spoke Y-configuration wheel has each spoke splitting into two prongs at the rim with a slight helical twist — replicating the OEM FL5 wheel geometry. Finish is matte black. The centre cap is black with a red Honda H emblem outlined in white. Red multi-piston Brembo calipers are visible behind the spokes as fixed multi-piston units, accurate to the FL5's front brake specification. Brake discs use an etched-piece sticker application — no raised groove lines, producing a flatter and optically more accurate disc surface than moulded plastic rotors common at this price tier. Tyre sidewalls carry legible "MICHELIN PILOT SPORT" text, matching the production FL5's Michelin Pilot Sport 4S 265/30ZR19 fitment.[2] All four wheels sit at a fixed ride height.

Engine Bay

Hood Opening Mechanism

MOTORHELIX FL5 1:18 hood open — alloy dog-leg hinges with silver bolts, metal support rod with hooked end, inner panel decals
The alloy dog-leg hinges on the MOTORHELIX FL5 1:18 are secured by visible silver metal bolts at their body attachment points — a structural fastener detail visible at 1:18 scale that confirms alloy construction rather than a cast-integral plastic mounting. The metal support rod terminates in a distinct curved hook end for positive engagement, rather than a simple pin-and-hole arrangement used on lower-cost alternatives.

The bonnet connects via alloy dog-leg hinges — two articulated silver linkages per side — with a separate metal support rod holding the lid open at the correct OEM angle. The hood inner surface is dark matte black plastic with moulded structural ribs. Two small rectangular decal labels with white backgrounds and black/yellow graphics are applied to the inner face, simulating the manufacturer warning stickers present on the real FL5's bonnet interior. A black insulated wire is neatly routed along the inner panel contour in dedicated clip channels.

Engine Bay Layout

MOTORHELIX FL5 1:18 engine bay overview — K20C1 red engine cover, carbon intake cap, gold turbo heat shield, red strut towers
A brake fluid reservoir with translucent white body and black cap is visible on the driver-side rear of the engine bay near the firewall — a component separate from the coolant reservoirs and documented here for the first time; most 1:18 engine bay reviews of the FL5 identify only the coolant circuit reservoirs. A second distinct fluid reservoir (translucent white, bright blue cap) sits on the passenger-side front corner.

The engine bay component layout replicates the K20C1's documented arrangement. The primary engine cover is red with "HONDA TYPE R" in white; above it sits a carbon-textured intake cover cap. The turbocharger heat shield is a gold/brass metallic corrugated piece at the lower-left engine area. Inner fender panels and strut towers are painted body-colour red. The coolant reservoir is translucent white with a bright blue cap. A battery sits on the right side of the bay in a black rectangular housing with white label markings.

Engine Bay Close-Up

MOTORHELIX FL5 1:18 engine close-up — woven carbon-texture engine cover, turbo heat shield with cooling fins, K20C1 block detail
The removable plastic engine cover on the MOTORHELIX FL5 1:18 uses a woven carbon-fibre weave texture rather than a printed carbon-look pattern — the individual weave cells are dimensionally raised, producing a tactile surface. The gold/brass turbo heat shield beneath features distinct vertical cooling fins/ribs, not a smooth corrugated surface; this fin detail is absent on most competitor 1:18 Type R engine bay reproductions.

With the decorative plastic cover removed, the K20C1 engine block is exposed in matte black/dark grey cast-metal finish. Silver rigid charge pipes run along the passenger-side wall, connected to the driver-side airbox via a corrugated black intake hose. Multiple identification sticker labels are applied throughout the bay. Removal of the front underbody engine guard panel additionally reveals the oil sump and exhaust header beneath.

Interior: RHD Cabin

Dashboard, Instruments, and Controls

MOTORHELIX FL5 1:18 RHD dashboard — water-slide decal infotainment and instruments, carbon-fibre dash trim, gear shifter, TYPE R badge
The infotainment screen water-slide decal on the MOTORHELIX FL5 1:18 renders multiple vehicle status icons rather than a static interface graphic — the multi-icon layout adds information density to the screen surface that a single-image or blank-panel approach cannot replicate at 1:18 scale. The door jamb inner frame is finished in gloss red painted metal, consistent with the production FL5's body-colour inner sill treatment.

The interior replicates the FL5's RHD configuration. The steering wheel is a three-spoke unit with a red Honda H centre emblem. Both the instrument cluster and floating infotainment screen use water-slide decal graphics. Three metallic dials sit on the centre console strip below the screen. The gear lever is a manual unit with a spherical silver metallic knob, diamond-plate aluminium trim around the shifter gate, and a black boot. The dashboard horizontal trim strip uses a carbon-fibre pattern. A TYPE R badge (red R) sits above the passenger-side vent on the dashboard face.

Seats, Floor, and Door Cards

MOTORHELIX FL5 1:18 interior — red sport seat, Type R floor mat, alloy etched accelerator pedal, door card detail
The steering wheel centre emblem on the MOTORHELIX FL5 1:18 is a red Honda H — matching the production FL5's red-badge steering wheel specification and the exterior badge colour. The gear shift knob is a polished spherical silver metal piece; at 1:18 scale, the metallic surface finish is distinguishable from moulded plastic alternatives used in lower-specification releases.

Front sport seats feature red primary surfaces with black outer bolsters and integrated headrests. Red seat belts are fitted. The floor is red flocking with a matching Type R floor mat. The accelerator pedal is alloy etched — not moulded plastic — a material distinction most 1:18 diecast in this price range do not make. Door cards carry a silver pull handle, dual power window switches, and a lower speaker grille. The headliner is uniformly dark matte black throughout.

Rear: Wing, Taillights, and Exhaust

Rear Wing Assembly

MOTORHELIX FL5 1:18 rear wing — alloy mounting posts, trapezoidal end plates, secondary trunk spoiler, CIVIC TYPE R badging
The main wing blade on the MOTORHELIX FL5 1:18 uses a gloss black surface while the vertical mounting struts are finished in matte black — two distinct surface treatments on a single assembly, replicating the production FL5's mixed-finish wing hardware. The taillight lenses include clear/white sections at the inner trunk-lid area for reverse light representation, distinct from the smoked outer sections.

The rear wing is a multi-piece assembly: gloss black main blade with curved underside and rising profile toward each tip, trapezoidal end plates with forward-swept top edges, and alloy mounting posts — not plastic — attaching to the trunk lid. Alloy posts resist the micro-flex that plastic brackets exhibit on comparable 1:18 models. A secondary spoiler element runs across the trunk lid surface below the main blade. The trunk lid carries three identifiers: a Honda H badge centrally, CIVIC TYPE R in the licence plate recess, and a separate red TYPE R badge at the lower right.

Taillights, Diffuser, and Exhaust

MOTORHELIX FL5 1:18 rear fascia — dark taillights, 3 asymmetric chrome exhaust tips, 5-fin diffuser, CIVIC TYPE R badge, parking sensors
The MOTORHELIX FL5 1:18 rear badge layout presents "CIVIC" and "TYPE R" as a single integrated rectangular unit with white text on black and a prominent red R — the badge is mounted in the licence plate recess as a cohesive plate, not as separate letter-by-letter stud attachments, which is the correct FL5 rear badge construction. The LED taillight signature graphic is visible as a distinct inner light pattern through the smoked outer lens.

Taillights are dark-tinted units wrapping the rear corners with three-dimensional internal construction and clear colour separation between lens sections. The rear window integrates defrost wire lines and a rear wiper at scale. Six parking sensor dots (three per side) are present on the painted bumper above the diffuser. The 5-fin matte black diffuser carries no carbon-fibre surface treatment. Three chrome exhaust tips are centrally grouped — two outer tips are visibly larger in diameter than the single centre tip, matching the production FL5's asymmetric triple-exit centre exhaust configuration.

Trunk Interior and Underbody

Trunk Opening and Interior

MOTORHELIX FL5 1:18 trunk interior — hydraulic rod, black flocked floor, red inner panel, retractable parcel shelf, trunk light
A small trunk interior light with a clear plastic lens is present on the MOTORHELIX FL5 1:18 left side wall — a functional detail absent on most 1:18 diecast in this subject category, where trunk interiors are treated as display-only cavities without lighting component replication. The rear seat headrests visible through the parcel shelf opening show black fabric/leather upholstery, adding material detail to the rear bulkhead beyond simple outline representation.

The trunk lid operates on alloy dog-leg hinges with a hydraulic support rod — the lid stays open without a separate prop. Trunk floor is black flocking; side walls carry moulded pocket detail. The trunk lid's inner panel is painted body-colour red. A retractable parcel shelf is present in the raised position — frequently omitted at 1:18. Taillight inner housings are black moulded plastic visible from inside the cargo bay.

Underbody and Exhaust Routing

MOTORHELIX FL5 1:18 underbody — central exhaust routing, MOTOR HELIX chassis inscription, front engine guard, suspension arms
The plastic chassis underbody of the MOTORHELIX FL5 1:18 carries an embossed "MOTOR HELIX" brand inscription — a moulded-in branding element that confirms manufacturer identity without a separate label. A small blue cylindrical component is visible near the front-left suspension, adding a colour accent to the otherwise silver/grey front underbody drivetrain area not documented in any other review source.

The exhaust routes as a single central silver pipe through two muffler bodies with heat shields, terminating at the asymmetric triple-tip cluster — consistent with the production FL5's centre-exit exhaust path. The front engine guard panel is separately removable, exposing the oil sump and exhaust header beneath. Front suspension shows silver lower control arms and grey strut components. Black plastic exhaust hangers support the pipe run to the chassis. The engine/transmission block is visible through the front chassis opening in grey/silver metallic finish.

Key Findings

  • Gloss black roof panel: the MOTORHELIX FL5 1:18 replicates the production car's two-tone roof — body-colour red body with a gloss black roof surface — a paint specification most 1:18 Type R releases omit in favour of a single-colour build.
  • Honda H badge in red surround: the grille badge uses a red border (not chrome), matching the FL5's OEM red-background badge specification — a colour point frequently incorrect on competitor releases.
  • Woven carbon-fibre texture engine cover: the removable plastic cover has dimensionally raised woven-weave cells, not a printed carbon-look pattern — tactile at 1:18 scale and distinguishable from flat-print alternatives.
  • Turbo heat shield with vertical cooling fins: the gold/brass heat shield has distinct vertical ribs rather than a smooth corrugated surface — a sub-component detail absent on most 1:18 FL5 engine bay reproductions.
  • Alloy dog-leg hinge bolts visible: silver metal fastener bolts at the hinge-to-body attachment points confirm alloy construction; most 1:18 hinges are cast-integral with no visible fastener detail.
  • Etched-piece brake discs: sticker application rather than moulded plastic rotors produces a flat disc surface with no oversized raised groove lines — an accuracy technique uncommon at this price tier.
  • Alloy-etched accelerator pedal: the throttle pedal is alloy etched rather than moulded plastic — a material distinction most 1:18 diecast in the $200–$400 bracket do not make.
  • Trunk interior light: a small clear-lens trunk light is present on the left side wall — a functional replication detail absent on most 1:18 diecast in this subject category.
  • Chassis MOTOR HELIX inscription: the plastic underbody carries an embossed brand name moulded into the chassis — not a sticker or printed label.
  • Hydraulic support rod on trunk lid: both bonnet and trunk stay open under their own mechanism; the trunk uses a dog-leg + hydraulic combination rather than a friction hinge or static prop.
MOTORHELIX Honda Civic Type R FL5 Rallye Red 1:18 diecast — 699-unit limited edition pre-built

MOTORHELIX · Honda Civic Type R FL5 · Rallye Red · 1:18 · 699-Unit Limited

Brand: MOTORHELIX | Scale: 1:18 | Edition: 699 numbered units

Dimensions: 26 cm (L) × 10 cm (W)

Opening features: All four doors · Bonnet/hood · Trunk lid

Build: Pre-built · Pre-painted · Display-ready | Drive: RHD | Fixed suspension

Notable details from this review: Gloss black two-tone roof · Red Honda H badge surround · Woven carbon-texture engine cover · Fin-ribbed turbo heat shield · Alloy hinge bolts · Etched brake discs · Alloy accelerator pedal · Trunk interior light · Chassis brand inscription · Hydraulic bonnet and trunk rods

View Product Page →

Frequently Asked Questions

What is the difference between the Honda Civic Type R FL5 and FK8 in 1:18 diecast?

The FL5 (2022–present, 6th gen) and FK8 (2017–2021, 5th gen) share the 2.0L K20C1 block, but the FL5's revised turbocharger lifts output to 315 hp and 310 lb-ft versus the FK8's 306 hp and 295 lb-ft.[1] At 1:18, the key visual differences are: FL5 has a seamless integrated wider rear body (FK8 shows a visible bolt-on flare step), a smoother front bumper without decorative vents, and a revised asymmetric triple-exhaust cluster. The FL5 also introduces a two-tone gloss black roof absent on FK8 models.

How many units of the MOTORHELIX Honda Civic Type R FL5 1:18 Rallye Red were produced?

The Rallye Red release is a 699-unit numbered production run. MOTORHELIX produces FL5 colour variants as separate edition events with their own numbering — future variants are not continuations of this run. At 699 units, this is among the smaller numbered 1:18 runs in the current Civic Type R FL5 market.

Does the MOTORHELIX FL5 1:18 model have fully opening features?

All four doors, the bonnet/hood, and the trunk lid open independently. The bonnet uses alloy dog-leg hinges with a separate metal support rod. The trunk uses alloy dog-leg hinges with a hydraulic support rod — the lid holds open without a static prop. Front wheels steer with steering wheel rotation. The front underbody engine guard is a separately removable fourth access panel.

What construction materials does MOTORHELIX use in the FL5 1:18?

The main body structure is diecast alloy. Detail and underbody components use ABS. Alloy-only parts: hood and trunk lid hinges, rear wing mounting posts, and the accelerator pedal (etched alloy, not plastic). Brake discs use etched-piece sticker application. Dashboard displays use water-slide decals. Centre console and door trim use etched-piece construction for button-separation detail.

Is the MOTORHELIX Honda Civic Type R FL5 1:18 right-hand drive or left-hand drive?

Right-hand drive (RHD). Steering wheel, pedal set, and driver seating are on the right. This matches the FL5's JDM and RHD-export markets including the UK, Australia, and Hong Kong. Most Western-market 1:18 Type R releases default to LHD; the MOTORHELIX FL5 is explicitly RHD.

How accurately does the MOTORHELIX FL5 1:18 replicate the rear wing and exhaust?

The rear wing replicates the FL5's tall-wing geometry: trapezoidal end plates with forward-swept top edges and alloy mounting posts (not plastic) on the trunk lid. The exhaust replicates the FL5's triple centre-exit cluster with the correct asymmetric sizing — two outer tips larger in diameter than the single central tip. The 5-fin matte black diffuser carries no carbon-fibre surface treatment.

What is Honda Civic Type R FL5 Rallye Red (colour code R-513)?

Rallye Red (R-513) is one of the launch colours for the FL5.[3] It is a high-gloss, non-metallic, non-pearlescent solid red applied uniformly across all exterior panels — including the FL5's wider integrated rear fenders — with no contrasting bodywork sections. On the MOTORHELIX model the body-colour red is offset by a gloss black roof, black A/B-pillars, and black window surrounds, replicating the production FL5's two-tone exterior specification.
